HOUSE PLANS & ELEVATIONS 2005

::: back to index
Click on a plan to see a bigger version.

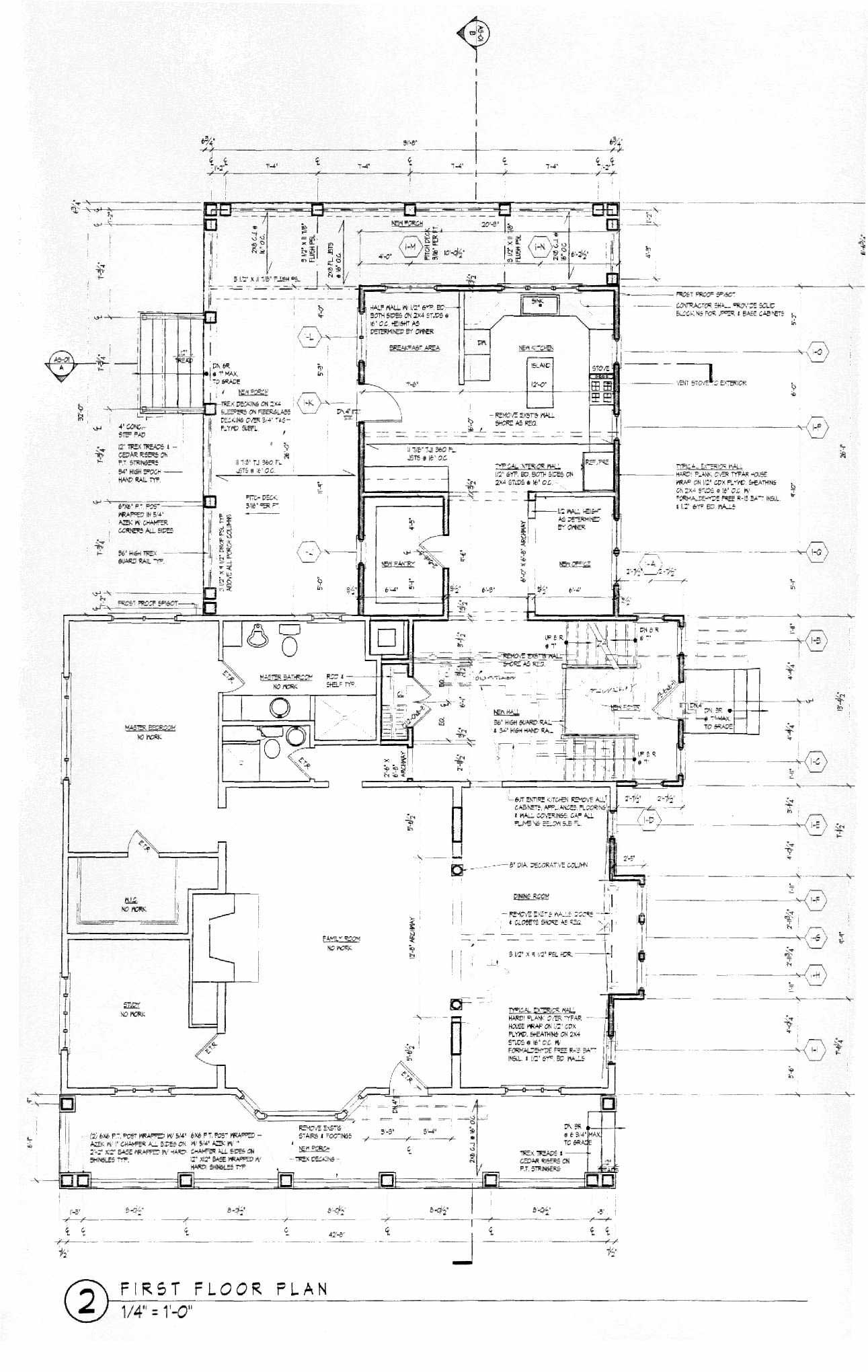

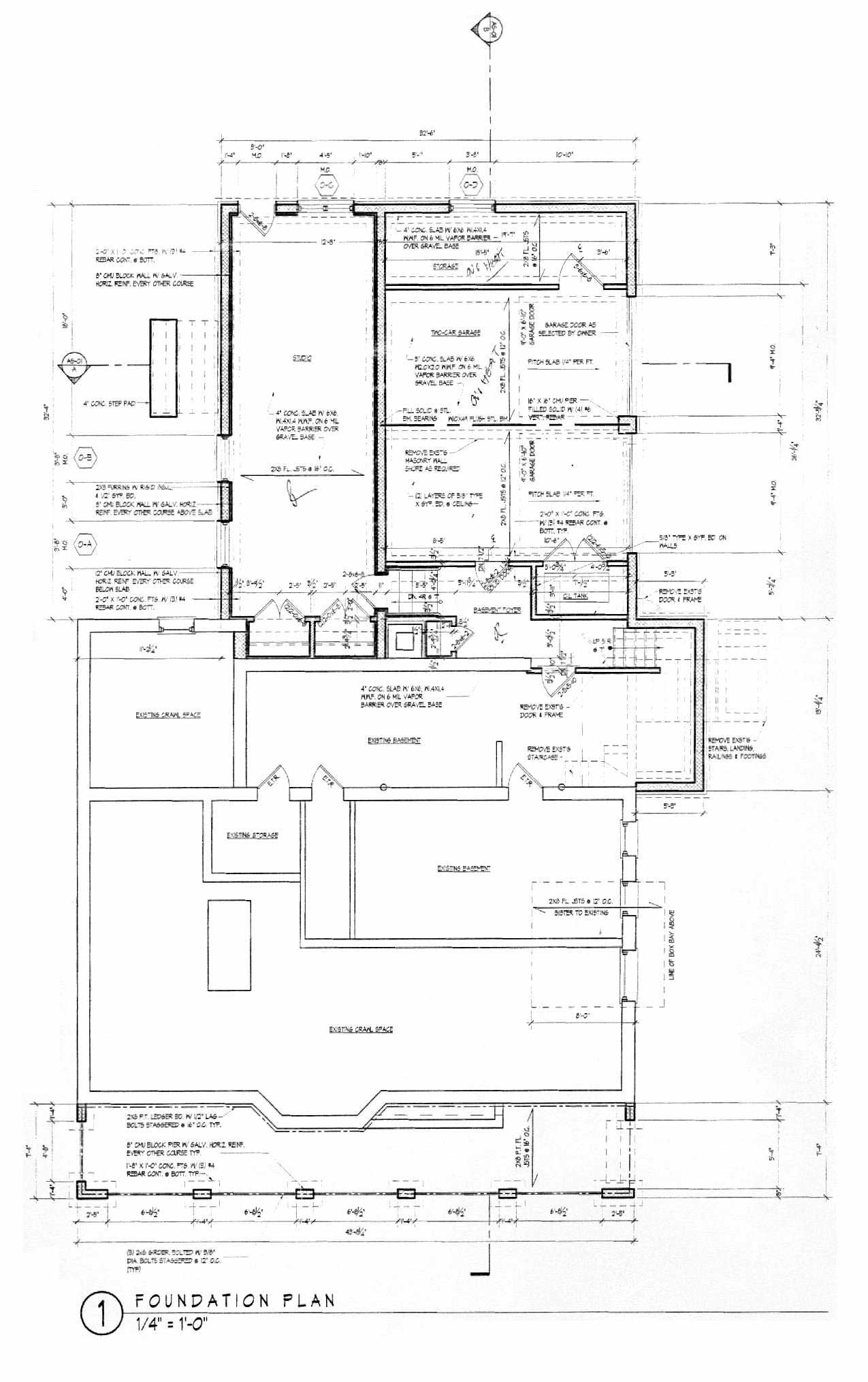

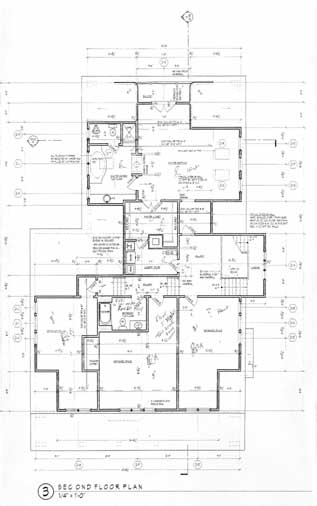

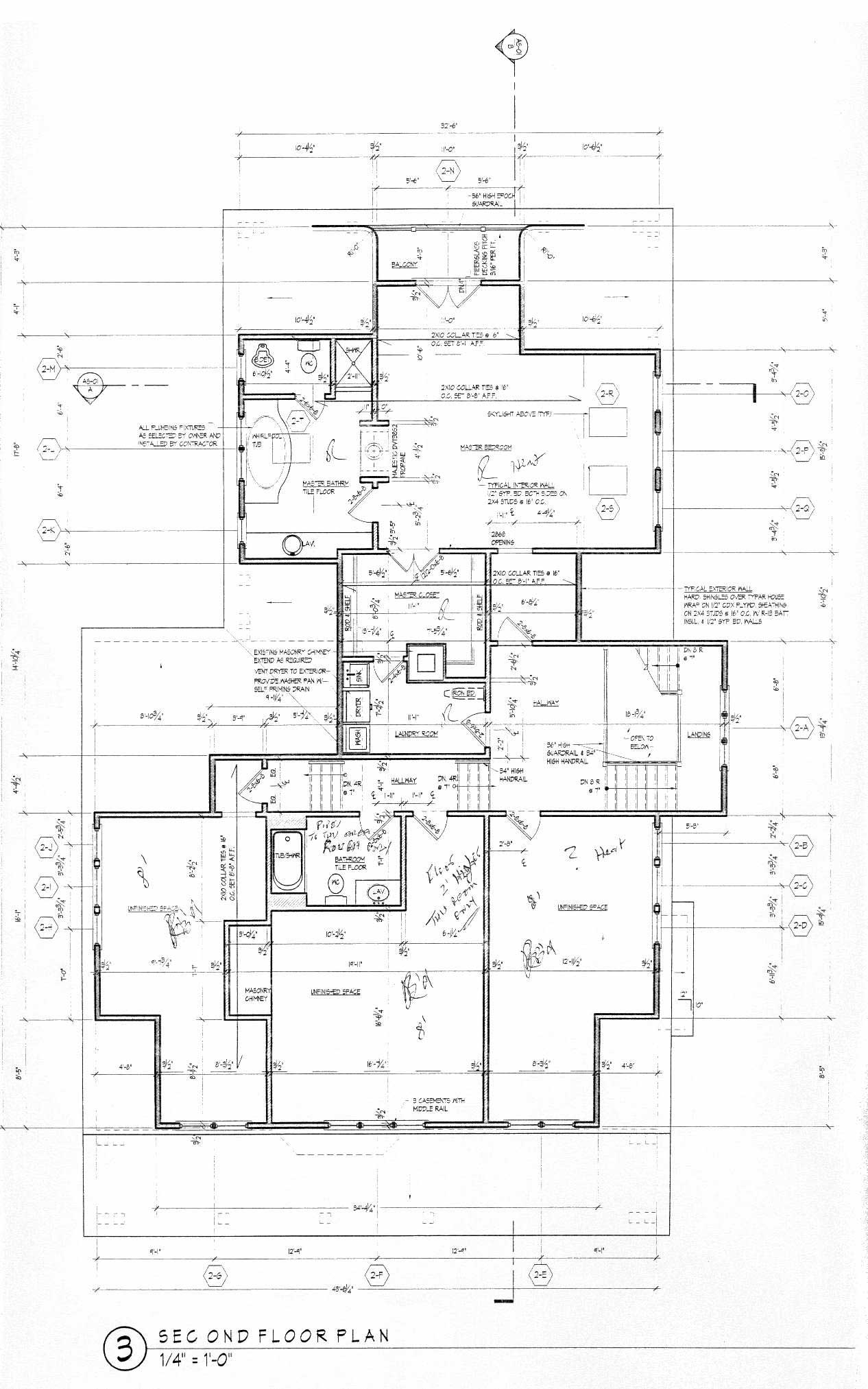

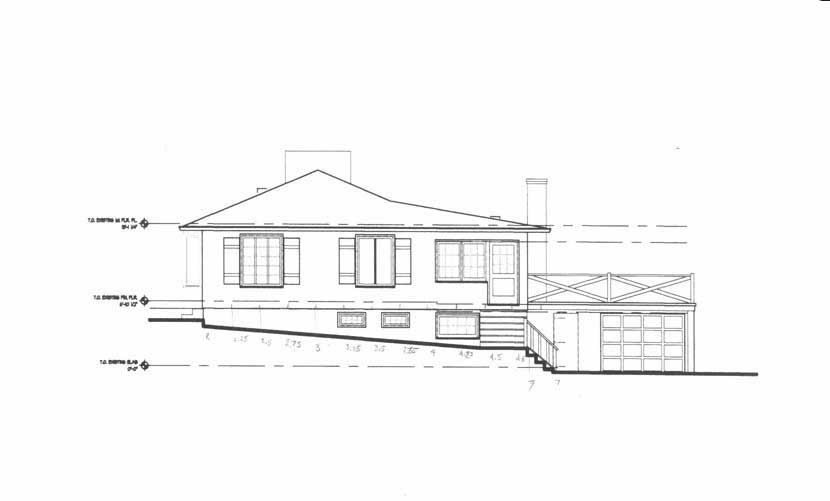

Existing East Facade

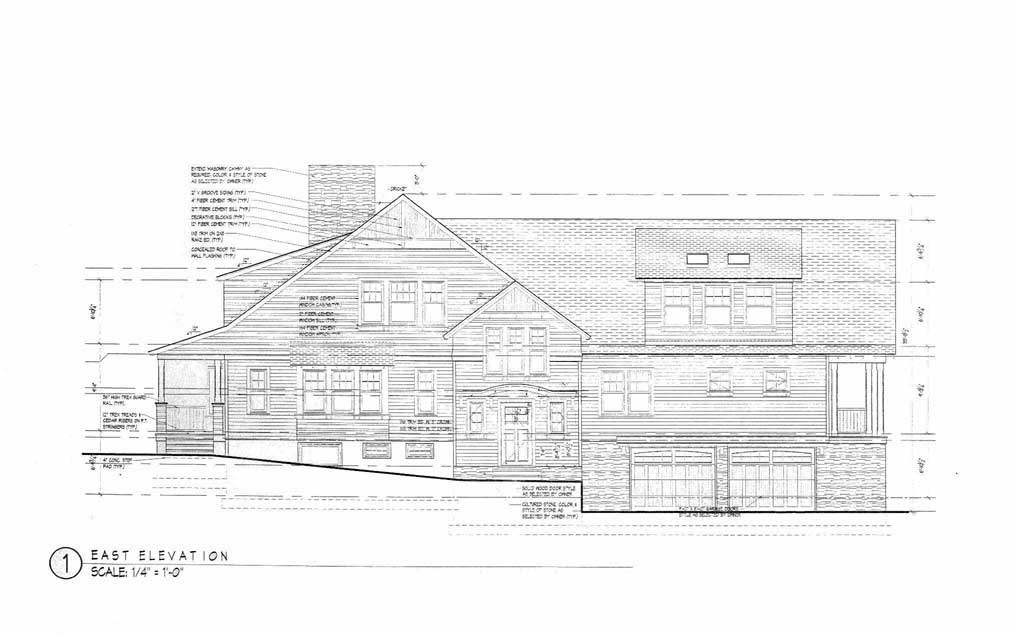

East Facade (facing the driveway and side yard)

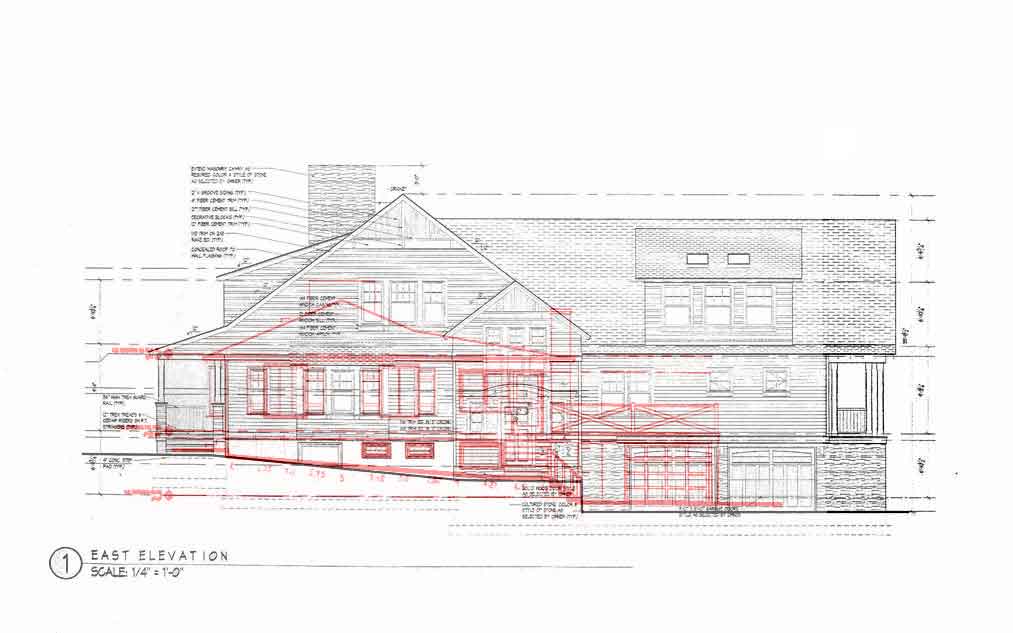

The old and new east elevations superimposed to scale. The new structure is an expansion of the old. It sits
on the same foundations on the same footprint and uses most of the same plumbing, heating and electrical
infrastructure. Many rooms on the first floor, except for having their ceilings rebuilt, are exactly the same. Though
the house becomes taller to accomodate the second floor, in the back it is only longer by one garage bay
plus the width of a storage room under the back porch.

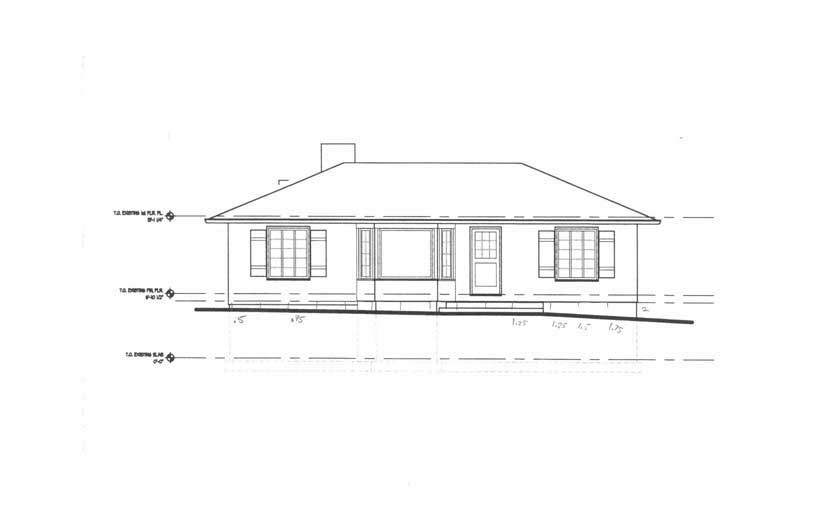

Existing South Facade

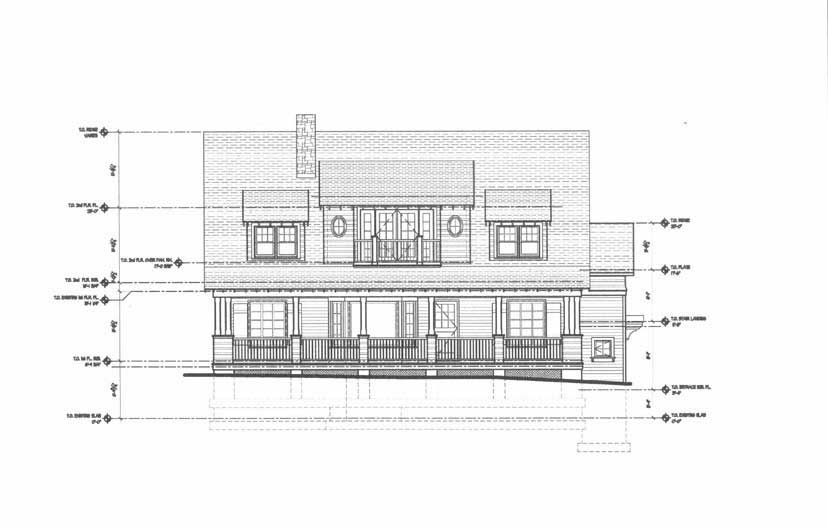

South Facade (facing Long Hill Road )

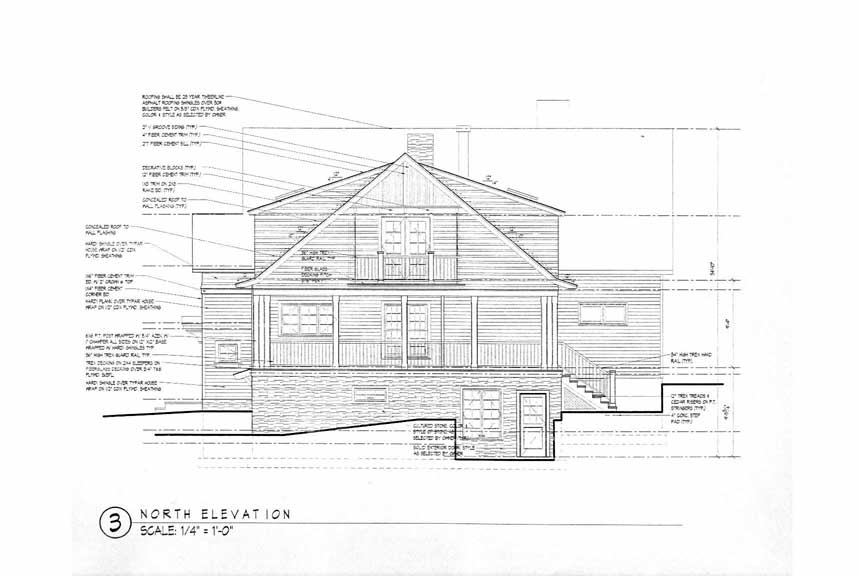

North Facade (back of the house)

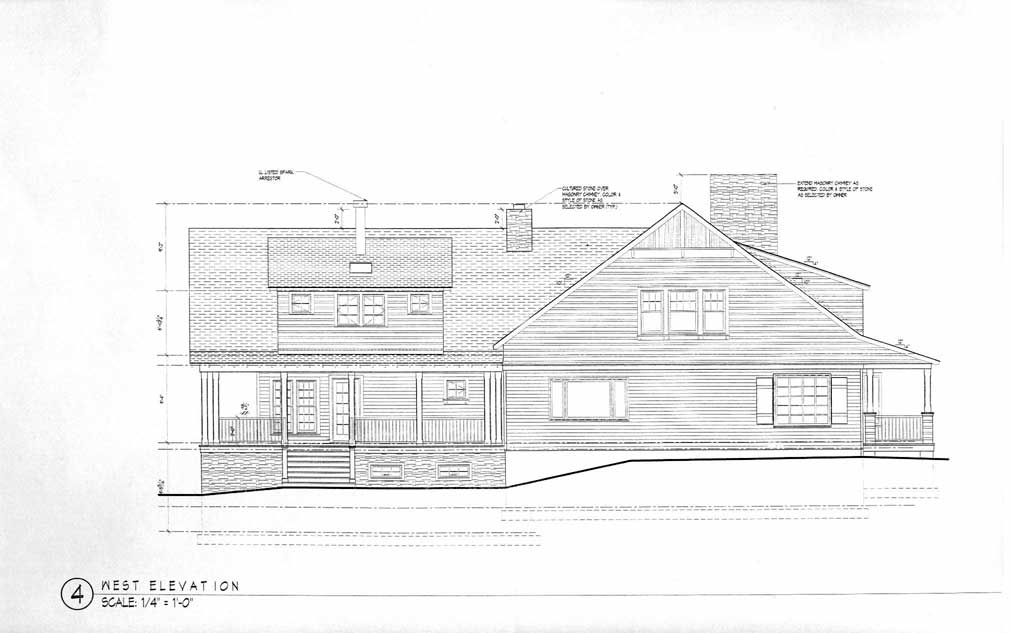

West Facade (side)
